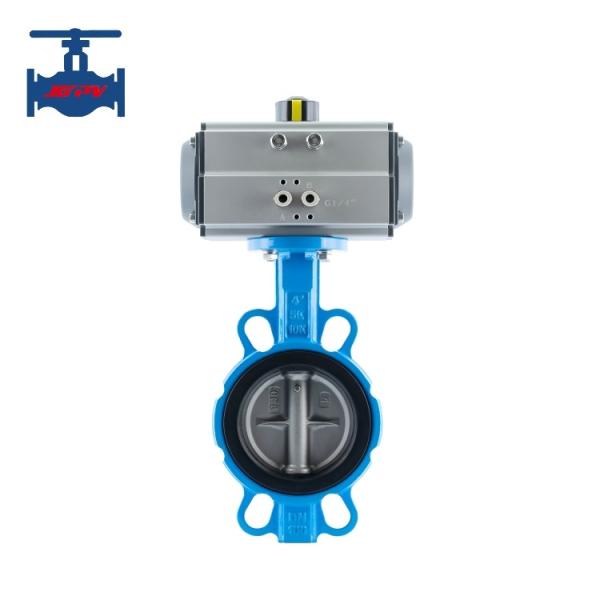

Wafer Type Pneumatic Butterfly Valve

Place of Origin : China

MOQ : 1set

Payment Terms : L/C,T/T,Western Union

Supply Ability : 14 days

Delivery Time : 14 days

Packaging Details : Plywood box safety packing

Application : General

Medium Type : Water, steam and oil etc.

Mounting Type : Direct Mount

Standard Or Non-Standard : Standard

Flow way : Two way

Actuation : Manual, Electric, Pneumatic,Automatic

Working Temperature : Normal Temperature And High Temperature

Sealing Performance : Sealing

Pressure Application : Normal Pressure

Quality Warranty : 18 Months

Contact Now

Highlight: Wafer Type Pneumatic Butterfly Valve


Product introduction:


The pneumatic soft-sealed butterfly valve is composed of a pneumatic actuator, a rubber-sealed butterfly valve, and a carbon steel or stainless steel valve disc and stem. The wafer-type pneumatic butterfly valve is suitable for applications with a temperature ≤120℃, such as in water supply/drainage and gas pipelines for industries like food, medicine, chemical, petroleum, power, light textile, and papermaking, serving to regulate flow and intercept media.


Product technical parameters:


Nominal Diameter DN (mm)

50~1200

Nominal Pressure PN (MPa)

0.64.0

Test Pressure (MPa)

Strength (water)

0.96.0

Enclose (Water)

0.664.4

Main Components

Body

Stainless steel/Carbon steel/alloy steel

valve plate

Stainless steel/Carbon steel/alloy steel

valve stem

2Cr13 stainless steel

Packing

PTFE, flexible graphite

Shaft

Stainless steel, PTFE, cemented carbide

Working temperature

-40~570℃

Medium suitable

Water, oil, steam, acid and alkali and other corrosive media


Product features:

1.Novel, reasonable and unique design, light weight, quick opening and closing.
2.Low operating torque, easy and labor-saving operation.
3.Can be installed in any position for easy maintenance.
4.Sealing components are replaceable, ensuring reliable bidirectional zero-leakage sealing performance.
5.Sealing materials feature aging resistance, corrosion resistance, and a long service life.
