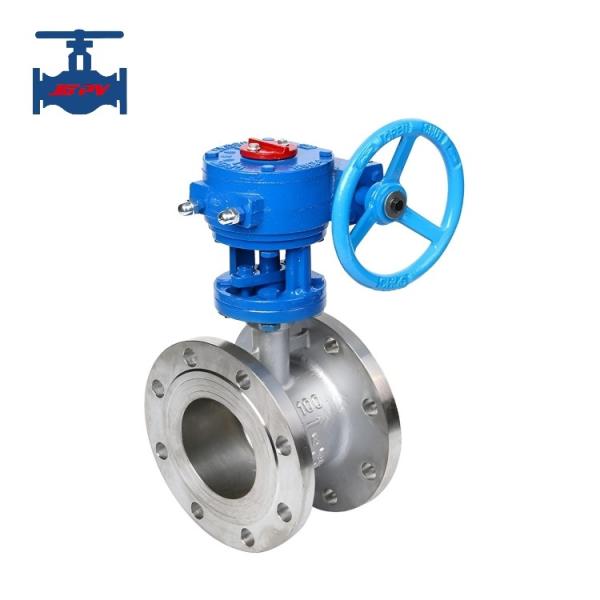

Worm Gear Flanged Butterfly Valve

Place of Origin : China

MOQ : 1set

Payment Terms : L/C,T/T,Western Union

Supply Ability : 100pcs per month

Delivery Time : 14 days

Packaging Details : Plywood box safety packing

Application : General

Medium Type : Water, steam and oil etc.

Mounting Type : Direct Mount

Standard Or Non-Standard : Standard

Flow way : Two way

Actuation : Manual, Electric, Pneumatic,Automatic

Sealing Performance : Sealing

Working Temperature : Normal Temperature And High Temperature

Pressure Application : Normal Pressure

Quality Warranty : 18 Months

Contact Now

Highlight: Worm Gear Flanged Butterfly Valve


Product introduction:


It is installed in the diameter direction of the pipeline. Inside the cylindrical channel of the butterfly valve body, the disc-shaped butterfly plate rotates around the axis at an angle between 0° and 90°. When rotated to 90°, the valve is in a fully open state. This valve is generally installed horizontally.
The handle butterfly valve features a simple structure, small size, and light weight, composed of only a few components. It can be quickly opened or closed with a 90° rotation for easy operation, while having excellent fluid control characteristics. When the butterfly valve is in the fully open position, the thickness of the butterfly plate is the only resistance for the medium flowing through the valve body. Therefore, the pressure drop generated by this valve is very small, resulting in good flow control characteristics.


Product technical parameters:


Nominal Diameter DN (mm)

50~1200

Nominal Pressure PN (MPa)

0.64.0

Test Pressure (MPa)

Strength (water)

0.96.0

Enclose (Water)

0.664.4

Main Components

Body

Stainless steel/Carbon steel/alloy steel

valve plate

Stainless steel/Carbon steel/alloy steel

valve stem

2Cr13 stainless steel

Packing

PTFE, flexible graphite

Shaft

Stainless steel, PTFE, cemented carbide

Working temperature

-40~570℃

Medium suitable

Water, oil, steam, acid and alkali and other corrosive media


Product features:


  1. Novel and reasonable design, unique structure, light weight, and quick opening/closing.
  2. Low operating torque, convenient operation, labor-saving and flexible.
  3. Can be installed in any position for easy maintenance.
  4. Sealing components are replaceable, ensuring reliable bidirectional zero-leakage sealing performance.
  5. Sealing materials feature aging resistance, corrosion resistance, and a long service life.
